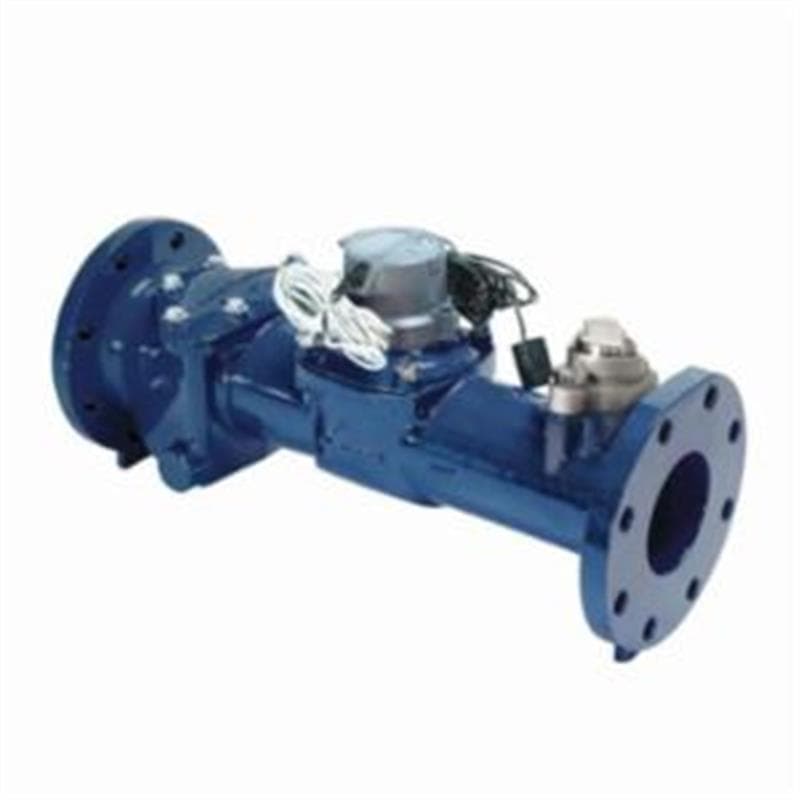

MTR 4" OMNI T2 - 100 CF (20")

5-3/4 in flanged radius 7-1/2 in bolt circle 8 bolts 5/8 in size of bolt 2 in test port Patented measurement principles yielding enhanced accuracy and longer service life than any other comparable class meter produced Superior construction of the main case and measuring chamber for longer life One moving part allows the measuring element to operate virtually without friction or wear, thus creating the extended upper and lower flow ranges capable on only the OMNI C2 meter Reduced head loss 31-day data logging Integral test port Interchangeable measuring chambers Electronic register with no mechanical gearing Configurable LCD display Resettable totalizer for testing Low battery alarm Fully magnetic pickup system for meter registration Maintenance is simple, if required at all Vertical and horizontal installations
