NDS® 10ND

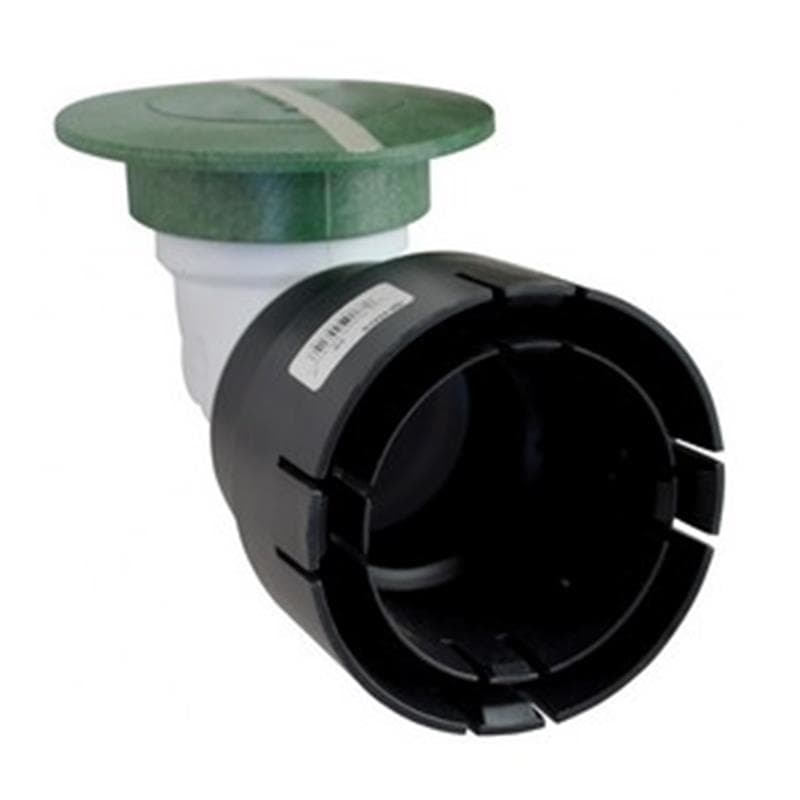

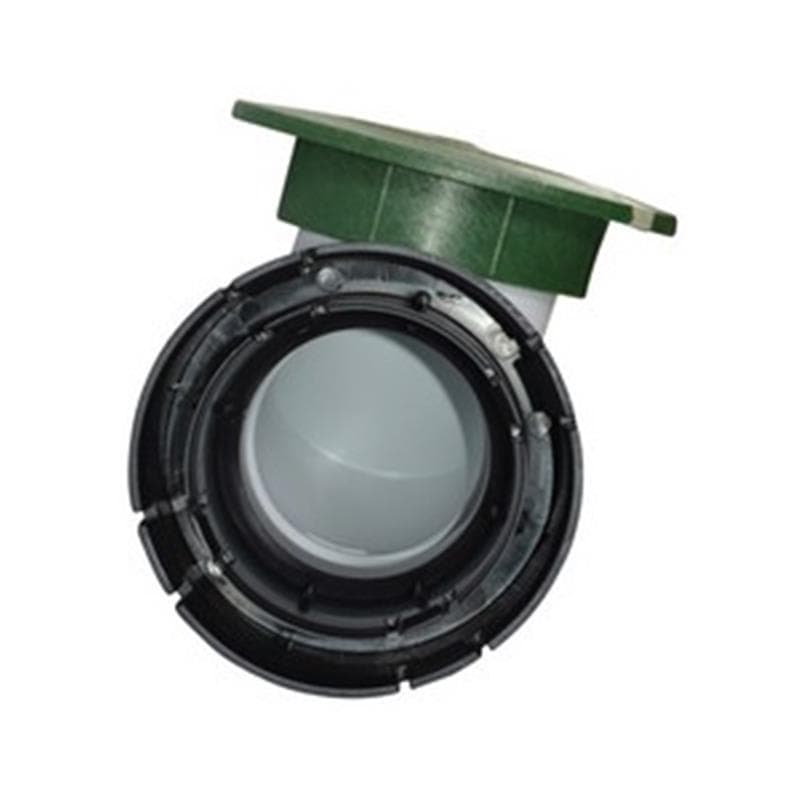

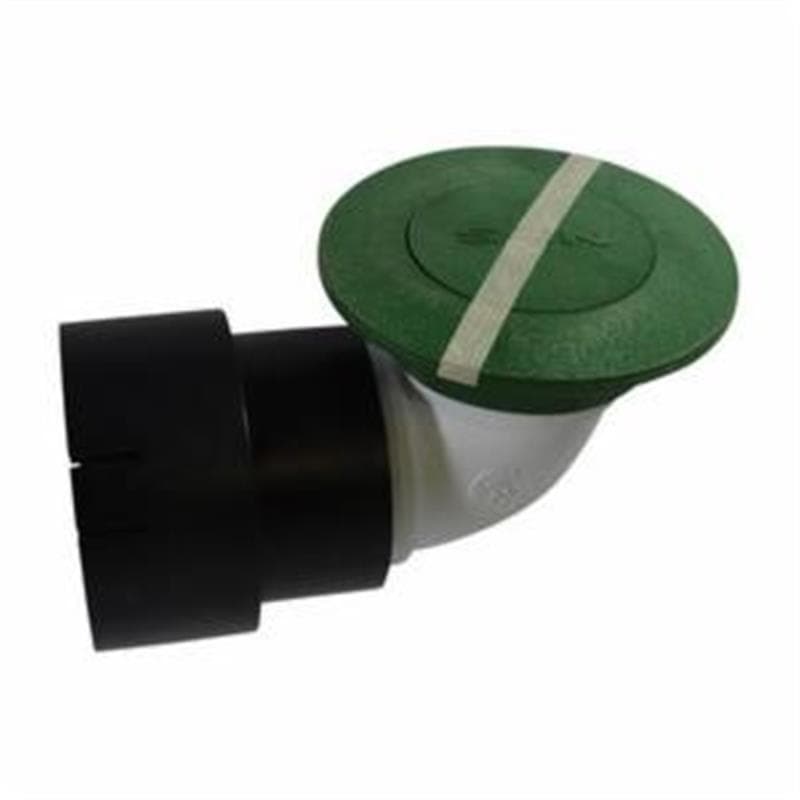

NDS® pop-up drainage emitters act as the discharge point of a drainage system, opening easily when needed to allow water to flow freely from the pipe and away from structural foundations. The patented spring loaded cap opens with the hydrostatic pressure of water flowing through the drain pipe, then closes as the flow diminishes. It allows water to be diverted and released to water safe areas away from structures, erosion-prone landscapes, and poor drainage areas. The NDS® pop-up drainage emitter with elbow is an easy, safe, and efficient solution to any drainage needs. Manufactured from 100% recycled HDPE Reduces trip hazard posed by open drain Pop-up top keeps rodents and debris out of system Low-rise to avoid interfering with mowers Color can be matched to su Universal adapter fits 3 in and 4 in corrugated pipe, 3 in and 4 in sewer and drain pipe, 4 in SCH 40 pipe, 3 in and 4 in triple wall pipe Ideal for discharging excess water from stormwater management system Spring automatically retracts 3-7/16 in ID 10 sq-in grate opening 43.26 gpm with 1 in head and 30.59 gpm with 1/2 in head Class A 1 to 60 psi load rating 5-1/4 in H Stainless steel grade 302 spring 0.04 psi open pressure 1/4 in drain hole elbow Application: Pedestrians, Bicycles and Wheel Chair Traffic
