- Bell & Gossett SERIESPL™ 1BL063

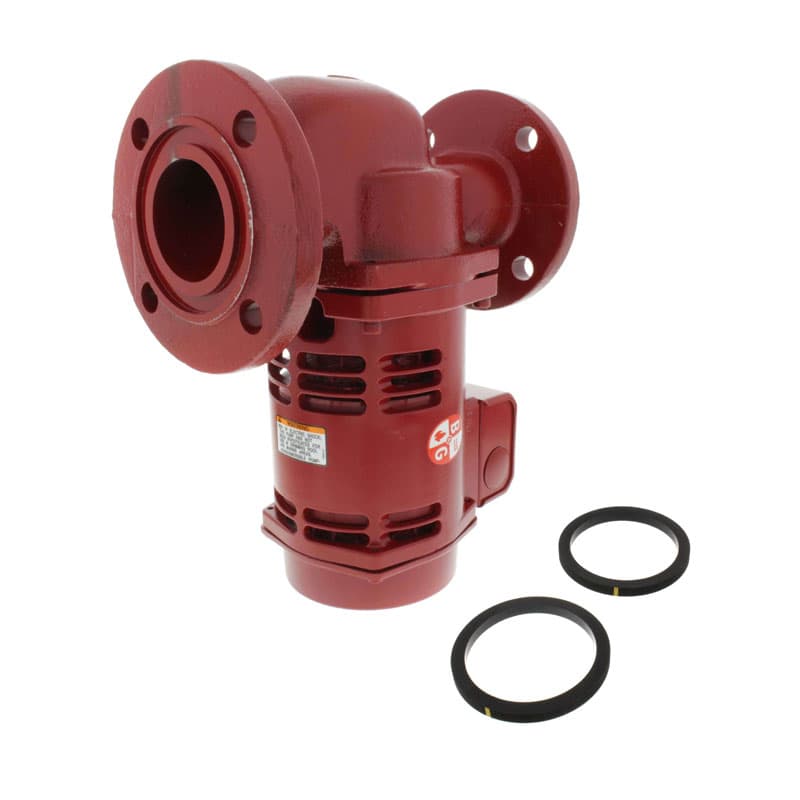

Bell & Gossett SERIESPL™ Booster Circulating Pump, Series: PL-130/2, 130 gpm, 20 ft Maximum Head, 2/5 hp, 115 VAC, 4.8 A, 60 Hz, 1 ph, 150 psi Maximum, 3200 rpm Motor, Glass Filled PPS Impeller, 225 deg F, Ball Bearing, 10-3/4 in L x 8-1/2 in W x 5-1/8 in H
Bell & Gossett powerful, dry-motor design delivers exceptional performance 25% more efficient than competition Precision-machined and balanced alloy steel rotor for superior performance Solid stiff-shaft design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses XL-11™ Precision-Crafted bearing system Permanently oil lubricated Completely maintenance free Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation Double sided stainless steel neck ring for optimum efficiency Cast iron booster body Stainless steel face plate Carbon steel shaft, stainless steel shaft sleeve Mechanical, carbon on silicon carbide seal Sealed precision steel ball bearing permanently lubricated motor bearings ODP motor EPDM elastomers 2 in NPT flange Model PL-130/2 in
