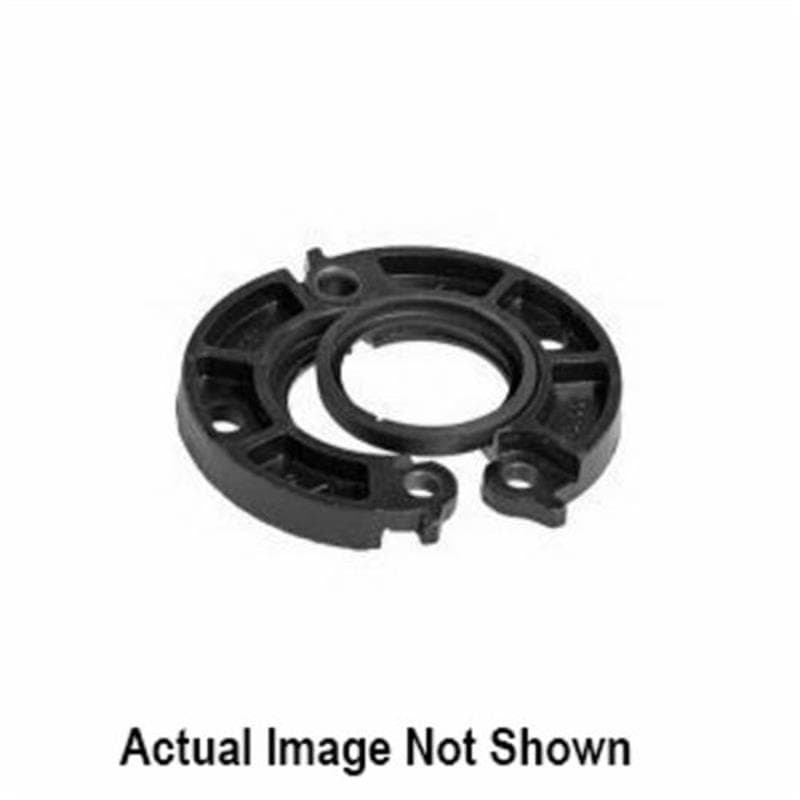

Victaulic® L100741GE0 Vic-Flange® Adapter With Gasket, 10 in Nominal

Grade E EPDM green stripe color code gasket 17.24 in Dia pipe For one time field test only, the maximum joint working pressure may be increased to 1-1/2 times the figures shown Style 741 Vic-Flange® adapters provide rigid joints when used on pipe with standard cut or roll groove dimensions and consequently allow no linear or angular movement at the joint When used with Victaulic series 700 butterfly valves, plastic pipe or light wall metallic pipe, small teeth in I.D. of key section should be removed and may be used on one side of the valve
