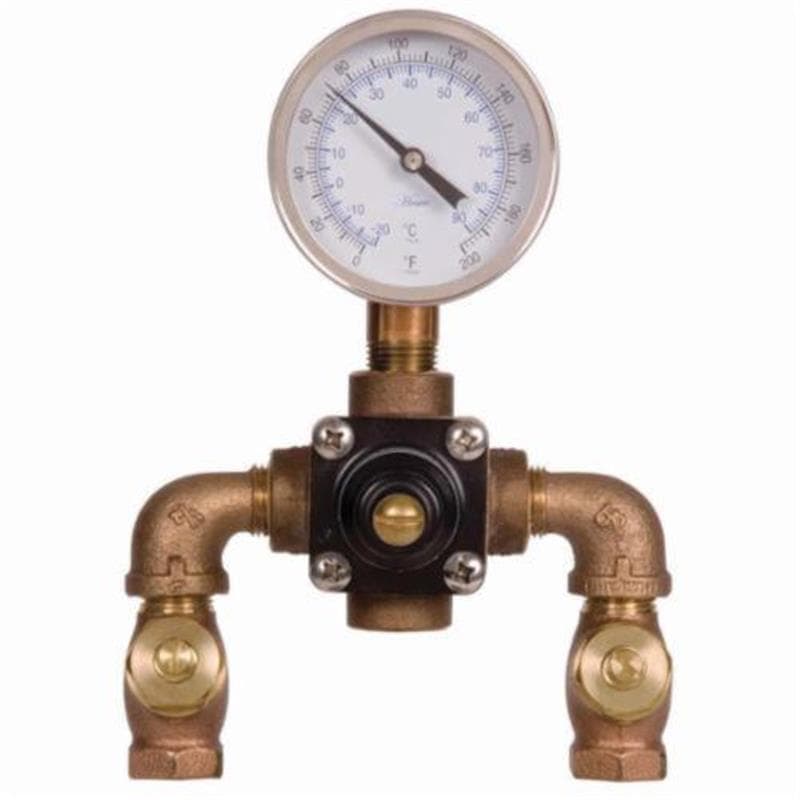

Speakman® Se-370 Thermostatic Mixing Valve

Integral cold water bypass Valve shutdown on loss of cold water 53 gpm Capacity 41 gpm Cold water bypass Provides 5 gpm cold water bypass in case of hot water or thermostatic element failure at 30 psi flowing 7 gpm capacity supports most single eye or eye/facewash stations at 30 psi flowing 120 to 140 deg F Inlet temperature hot and 33 to 80 deg F inlet temperature cold 20 deg F Minimum temperature differential (from valve set point) Valves provide a positive shutoff when cold water is lost Integral strainer checkstops on inlets 85 deg F Adjustable set point Automatic spring check stops Valve holds to a +/- 3 deg F temperature Provides a safe and plentiful supply of tempered water when used in conjunction with a potable water source 7 gpm flow capacity which can support most single eye or eye/facewash stations Also provides 5 gpm cold water bypass in case of hot water or thermostatic element failure Features Check valves and an outlet thermometer 1/2 in inlet, 1/2 in outlet NPT connection Below counter mount
