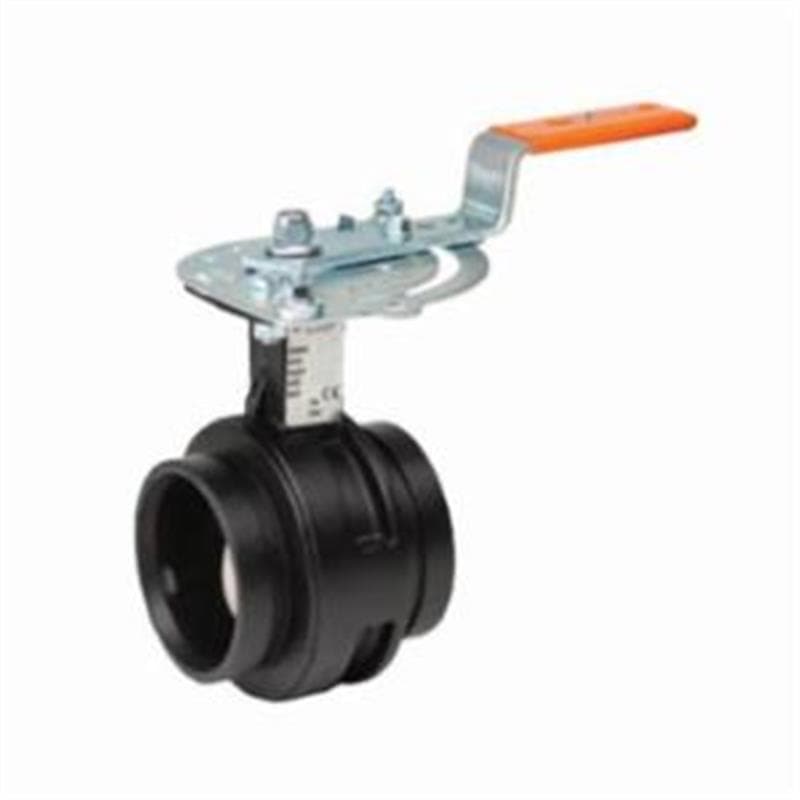

Victaulic® V040761SE2 76 Series Type V Butterfly Valve, 4 in Nominal

Electro less nickel coated ductile iron disc Patented pressure enhanced rubber seat design Drive hub designed to accept nearly all types of actuation Stem seals prevents leakage of media Upper and lower stem bearings help maintain constant low torque values for the life of the valve Stem blow out proof design utilizing stainless steel Grooved end body reduces the weight of the valve and makes it easier to install Rectangular drive positive rectangular drive eliminates fasteners in the flow stream and design prevents replacement errors Patented seal cartridge houses stem seals Thermal barrier reduces condensation on gear operators when installed in chilled water applications 2 to 6 in ductile iron end face and 8 to 12 in ductile iron seal retainer Grade E EPDM is recommended for cold and hot water service within the specified temperature range plus a variety of dilute acids and many chemical services Standard C36000 brass stem seal cartridge Fiberglass or 316 stainless steel with TFE lining bearings Carbon steel stem retaining ring
