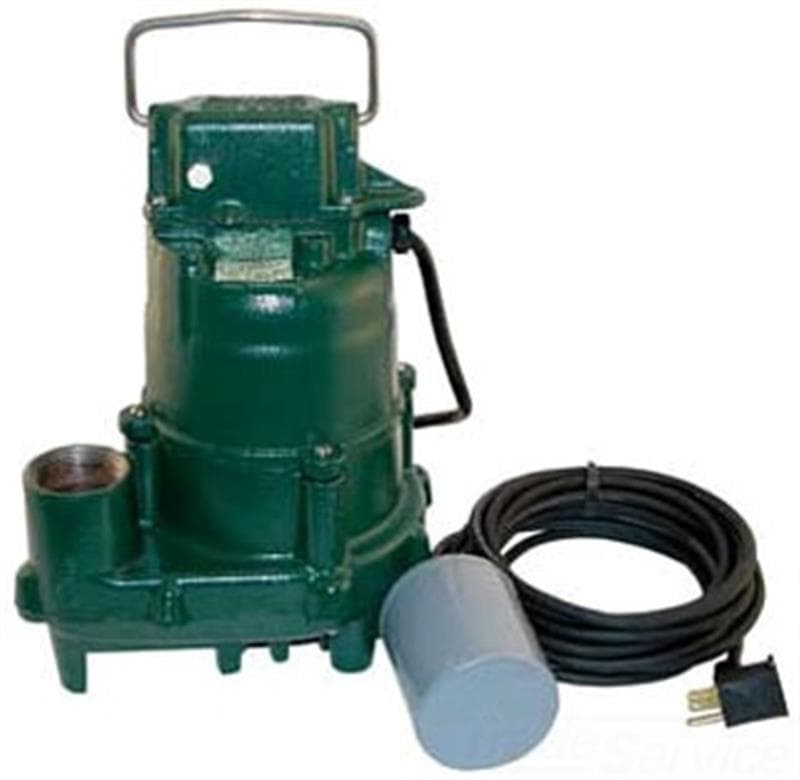

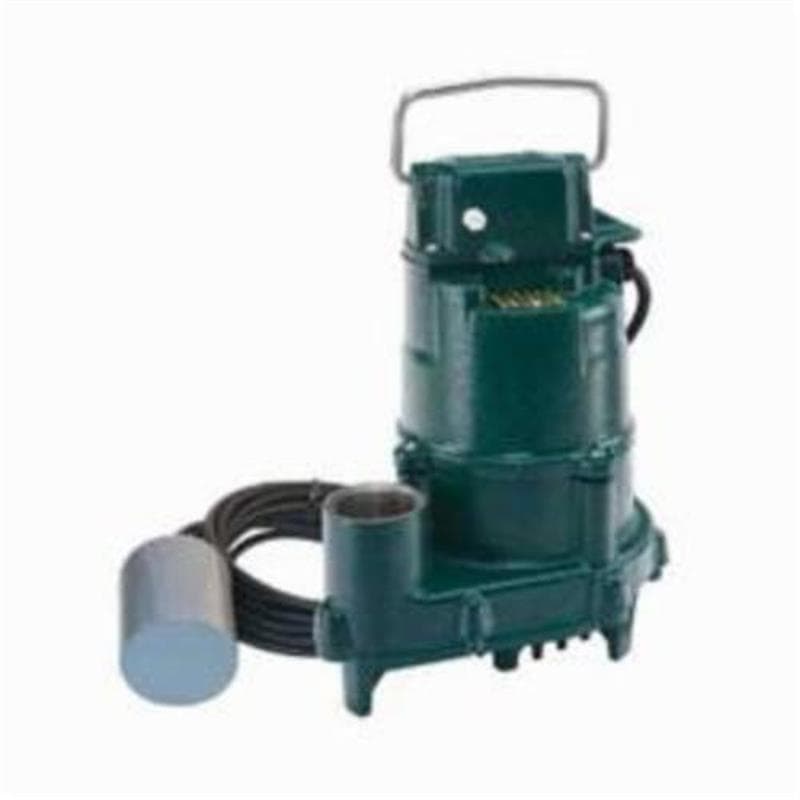

- Zoeller® 152-0005 Effluent Pump
Zoeller® Effluent Pump, Single Seal, Series: High Head Dose-Mate 150, 77 gpm Maximum, Automatic/Non Automatic: Automatic, 1-1/2 in NPT Outlet, 38 ft Maximum Head, 4/10 hp, 115 VAC, 8.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, Engineered Thermoplastic Non-Clogging Vortex Impeller, 130 deg F, Upper Sleeve/Lower Ball Bearing, Cast Iron, 12-1/8 in H Dimensions
Corrosion resistant, powder coated epoxy Stainless steel lifting handle Assembled with stainless steel bolts 4/10 hp, passes 3/4 in spherical solids Oil filled, hermetically-sealed, automatic reset thermal overload protected motor Carbon/ceramic seals Upper sleeve bearing and lower ball bearing running in bath of oil 20 ft, UL listed power cord with molded, 3-wire plug 1-1/2 in NPT vertical discharge For septic tank, low pressure pipe (LPP) and enhanced flow STEP systems Over 130 deg F special quotation required
