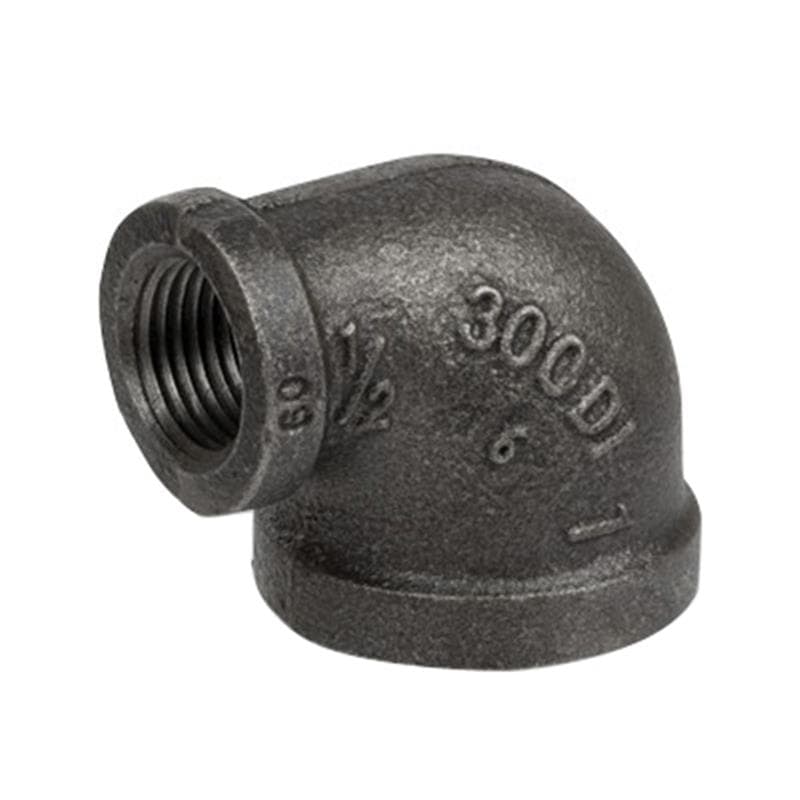

1-1/4 x 1 in 90 Elbow Ductile Iron Screwed GS

PN :
22699

1-1/4"x1" 90 Elbow Ductile Iron Screwed GS

What's the price?

Sign in or Register for Pricing and Inventory


  • SCI branded ductile iron threaded fittings are UL listed and FM approved at 500 psi Rated to 300 WSP Castings conform to ASTM A536 Fitting dimensions conform to ASME B16.3 Bushings and plugs conform to ASME B16.14 Fittings are 100% air tested NPT threads on all fittings conform to ASME B1.20.1 Independent lab verification that fittings meet applicable chemical & physical properties Standard/Approvals: ISO 9001:2008, ISO 14001, UL Listed, FM Approved

  • Attribute Value UOM
    Nominal Size 1-1/4 x 1 in
    Type Class 300 Threaded
    Series 35RE3
    Nominal Size 1-1/4 x 1 in
    End Style NPT
    Angle 90 deg
    Pressure Rating 500 psi
    Temperature Rating 150 deg F
    Material Ductile Iron
    Industry Standards ASTM A536/ASME B16.3/ASME B1.20.1
