- Zoeller® 161-0004 Flow-Mate

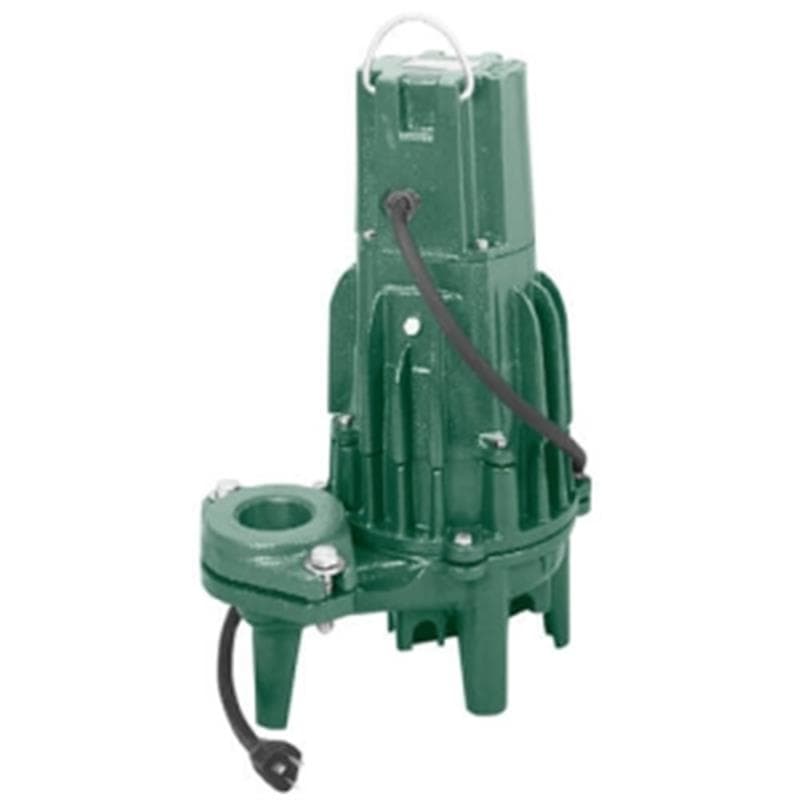

Zoeller® Submersible Effluent Pump, Single Seal, Series: High Head Flow-Mate 160, 100 gpm Maximum, Non-Automatic, 1-1/2 in NPT Outlet, 56 ft Maximum Head, 1/2 hp, 230 VAC, 7.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Bronze Non-Clogging Vortex Impeller, 130 deg F, Ball Bearing, Cast Iron, 12-3/4 in W x 19-5/16 in H Dimensions
Durable, cast iron constructed switch case, base, motor and pump housing Cast iron class 25 to 30 (25000X tensile strength) Impeller bronze class 85-5-5-5 Corrosion resistant, powder coated epoxy Oil filled, hermetically-sealed, automatic reset thermal overload protected motor Upper and lower ball bearings running in bath of oil Carbon and ceramic shaft seal No screens to clog Neoprene square ring and gasket Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly Passes 3/4 in (19 mm) spherical solids On point - 14-3/4 in, off point - 5 in 100% of units are computerized tested
