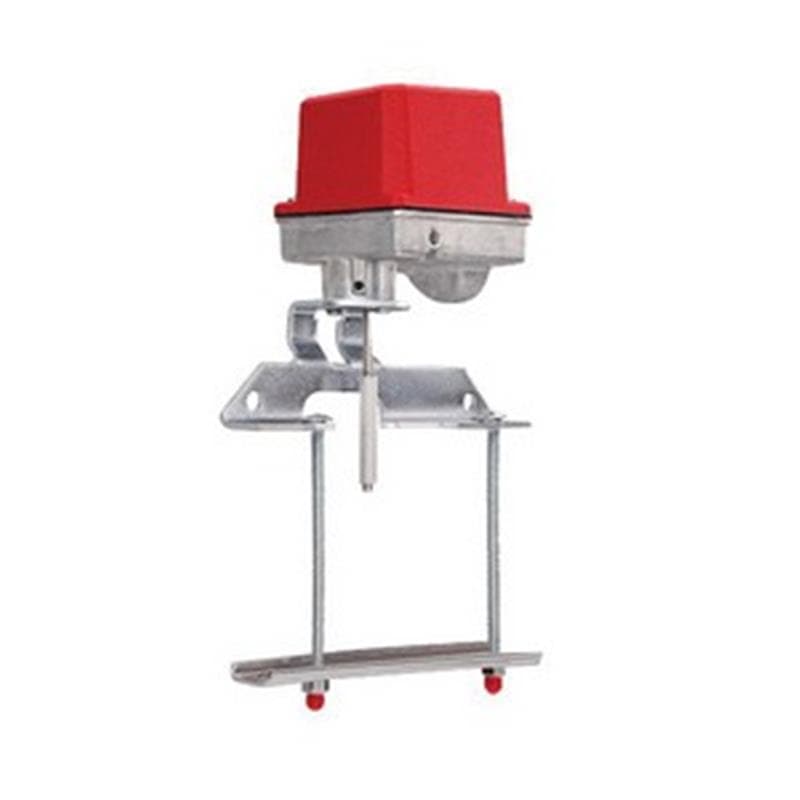

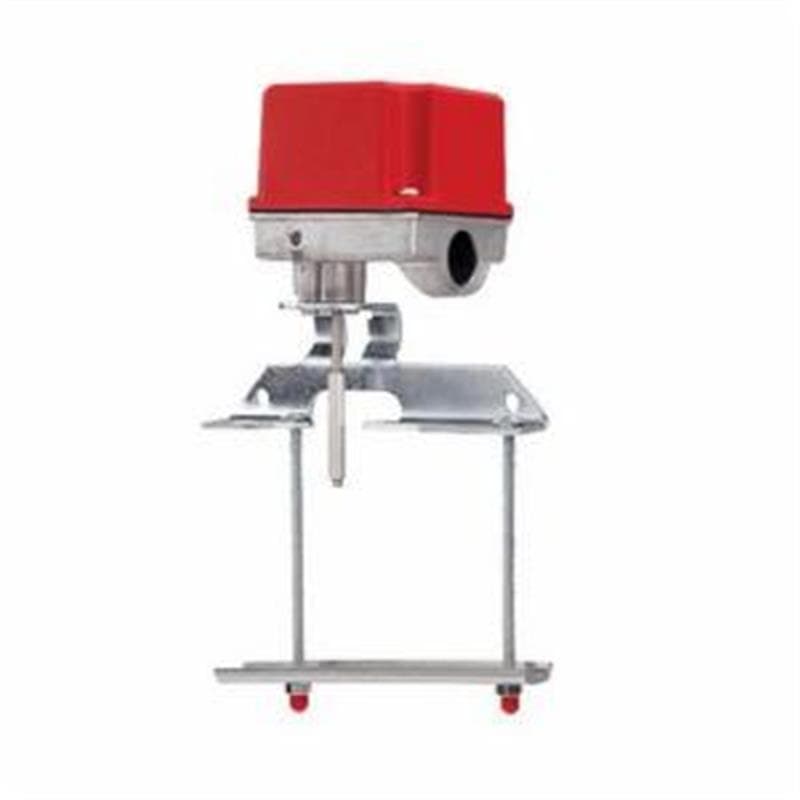

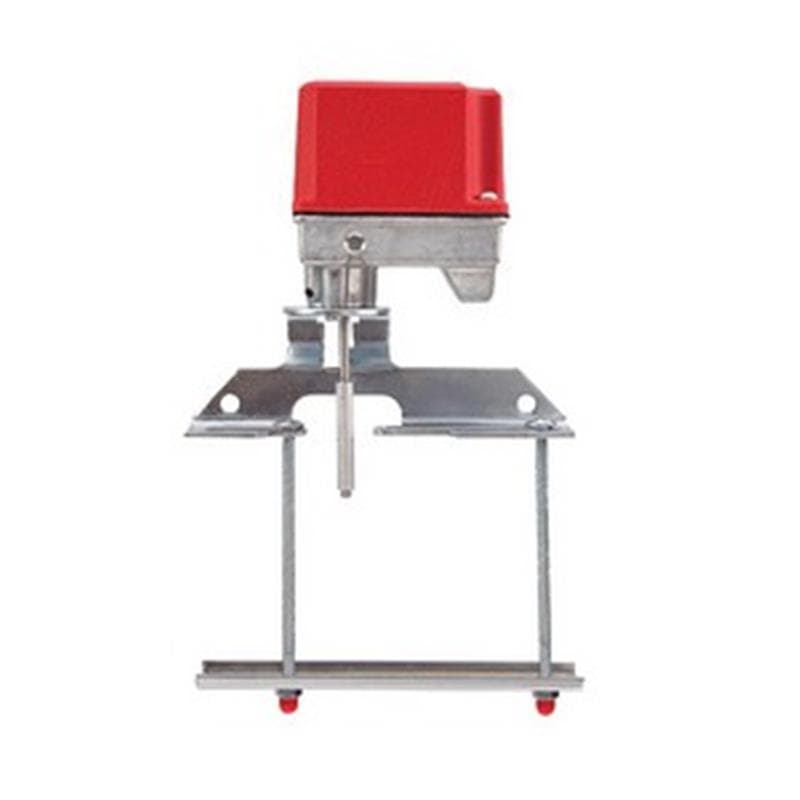

System Sensor® OSY2

For supervising a variety of control valves, including outside screw and yoke, post indicator, butterfly, and rising and non-rising stem gate User-friendly mounting bracket fits newer valve yokes Single side conduit entry does not require right angle fittings Adjustable length actuator eliminates the need for cutting the shaft Accommodates up to 12 AWG wire Three position switch monitors vandal and valve close signals Two spdt contacts are enclosed in a durable terminal block for added strength 100% synchronization activates both alarm panel and local bell simultaneously Robust construction Application flexibility Simplified operation Reliable performance 2-5/8 in maximum stem extension One single side open for 1/2 in conduit Outside screw and yoke valves 2-1/4 in H x 6-3/4 in W x 1 in D bracket span Standard/Approvals: UL/ULC Listed, FM, MEA Approved, LPCB, G4020028-27 VDS, 7770-1209:147 Application: For used to monitor the open position of an outside screw and yoke type gate valve
