Ford C38-13-2-188-NL Ford C38-13-2-188-NL

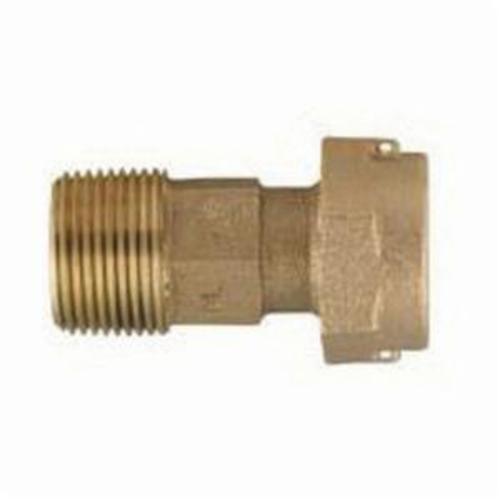

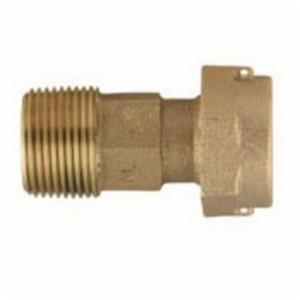

FORD C38-13-2-188-NL C38 Style B Straight Meter Coupling, 5/8 x 3/4 in Nominal, MNPT x Swivel Nut End Style, Brass

  • PN: 189764
  • MPN: C38-13-2-188-NL
  • Min. Qty: 1
  • Qty Interval: 1
Call for Additional Availability
Ford C38-13-2-188-NL

DESCRIPTION

FORD C38-13-2-188-NL Meter Coupling, Lead Free Style B Straight, Series: C38, Fitting/Connector Type: Coupling, 5/8 x 3/4 in Nominal, MNPT x Swivel Nut, 2-3/16 in Length, Brass

  • Catalog

    https://www.utssupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Ford_BBIM-77-NL_Catalog.pdf

  • Data/Specification Sheet

    https://www.utssupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Ford_C38_13_2_188_NL_Datasheet.pdf

  • Specification Sheet

    https://www.utssupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Ford_C38-13-2-188-NL_Specification_Sheet.pdf

SPECIFICATIONS

5/8 x 3/4 in
Style B Straight
C38
Coupling
MNPT x Swivel Nut
2-3/16 in
Brass
NSF/ANSI 61/372

FEATURES

  • Style "B" coupling is long body style with heavy hex on barrel
  • Meter swivel nut is not removable
  • Rubber meter gasket (EPDM)
